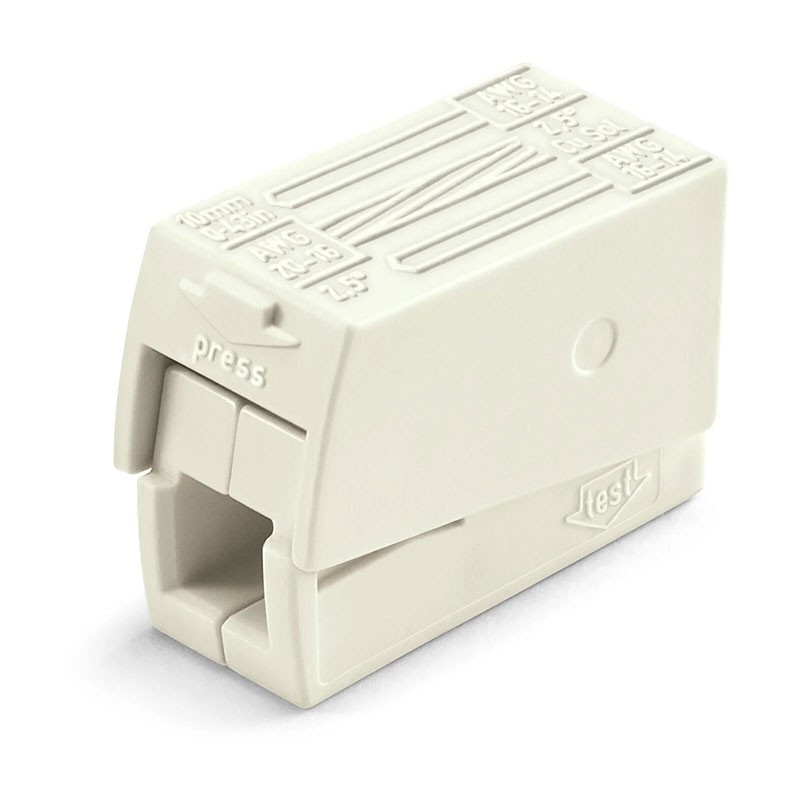

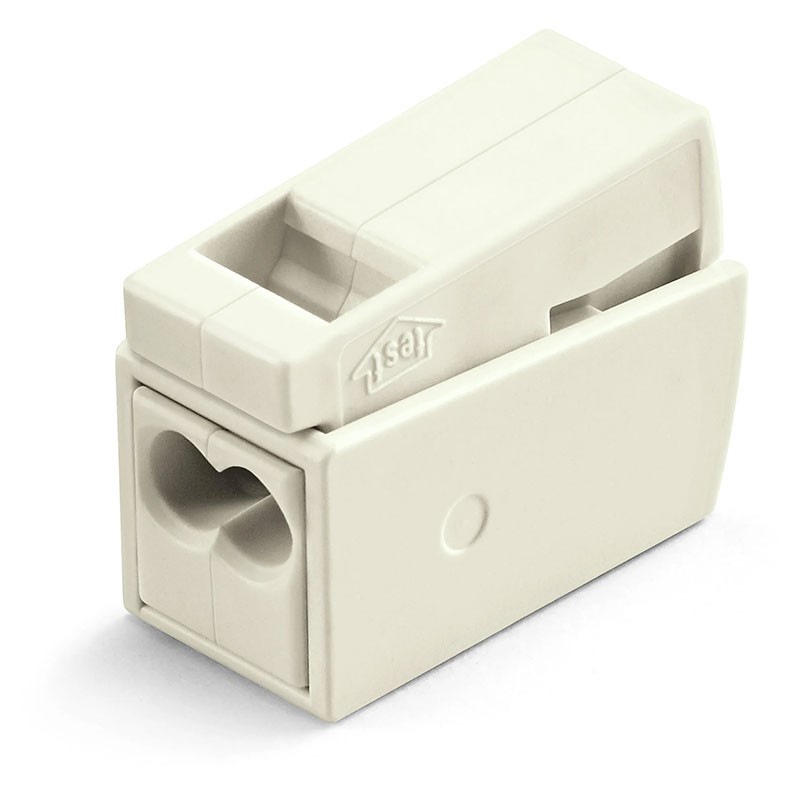

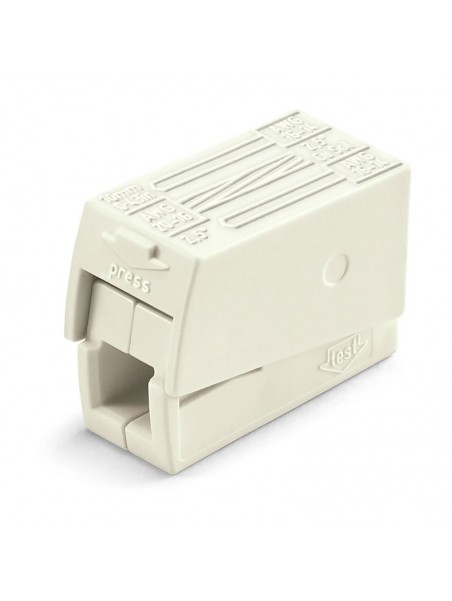

Wago 224-112 Series terminal block, 1-pole, 24A
WAGO018583596
€0.30
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING

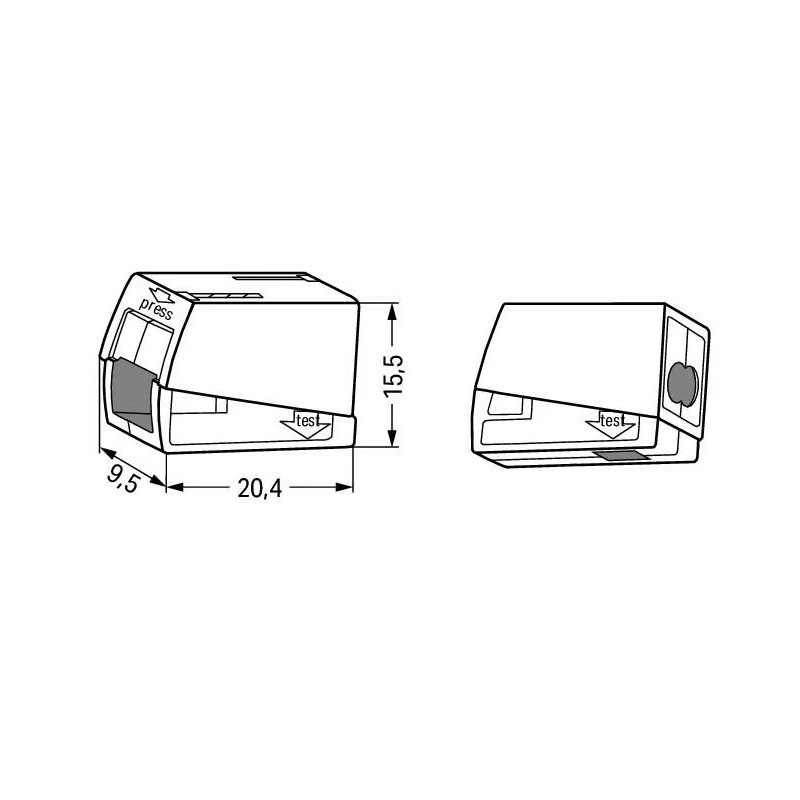

05 63 63 94 69With the classic WAGO 224 connection terminal, up to two different conductor types can be easily and securely connected. Thanks to the practical lever function, no additional tools are required for installation. It is 9.5mm wide, 20.5mm long and 15.5mm high. The housing is white plastic.
The diameter of the connection point can vary from 0.5mm² to a maximum of 2.5mm², which makes it easier to connect all copper conductors to one or more wires. No further pre-treatment of the cables is necessary.
A 1 piece packaging unit is provided.
2-wire terminal, max.
Continuous use temperature 105°C
Other
Total number of terminal points 3
Total number of potentials 1
White color
Pollution degree : 2
Nominal voltage EN [V] : 400 V
Rated surge voltage [kV] : 4 kV
Nominal current 4 kV [A] : 24 A
Connection technique : PUSH WIRE® single-wire
connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG
stripping length 1 9… 11 mm / 0.35… 0.43 inch
Wiring type Side wiring
Fire load [MJ] 0.047 MJ
Weight [g] 3.053 g
safety instruction 1 : in earthed networks
WAGO018583596
4044918583596
Data sheet
- FAMILY
- Accessoires
- Height
- 15.5 mm
- Width
- 9.5 mm
- Overall lenght
- 20.5 mm
- Weight
- 0.004 Kgs
New product
50
0.19 Kgs
- Length : 11.2 cm
- width : 9 cm
- height : 6 cm
