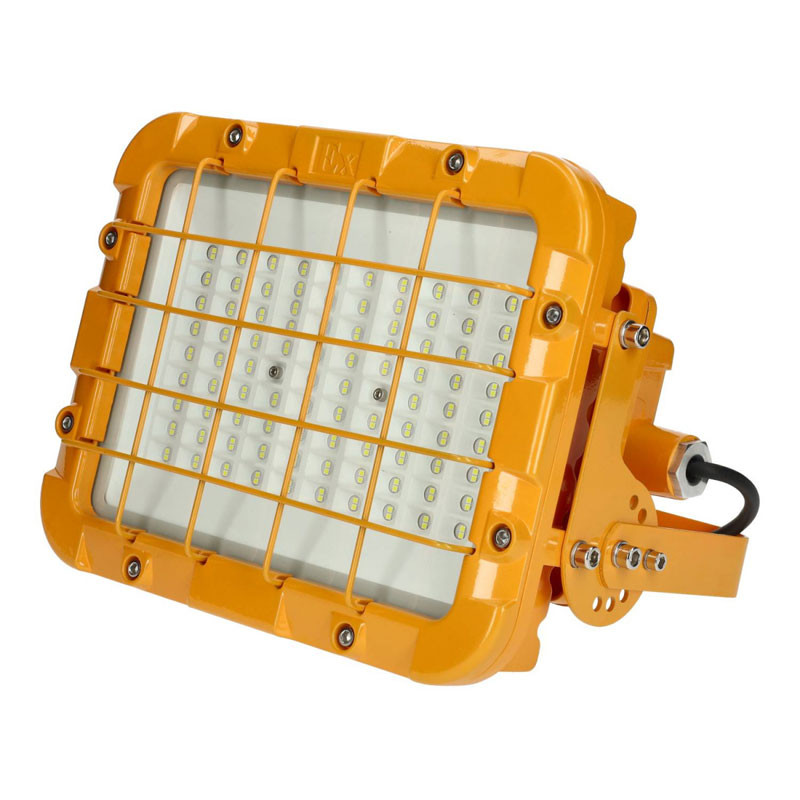

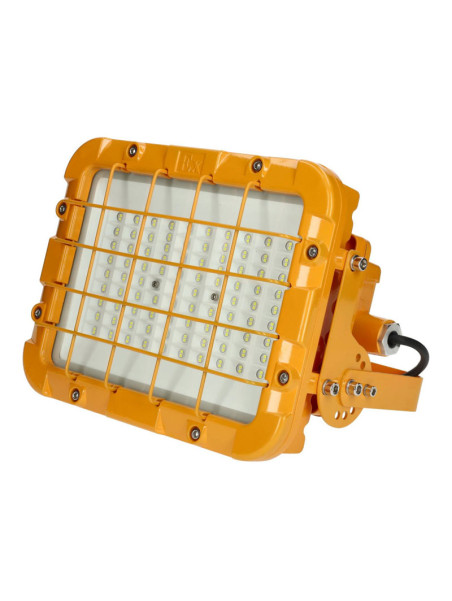

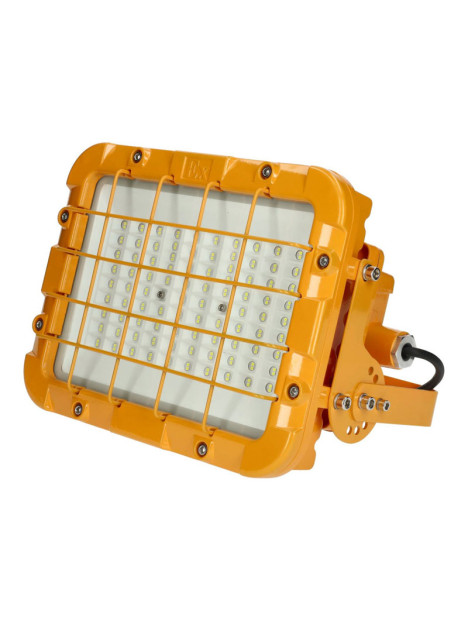

Projector ATEX led 150w 16000Lm IP66 Zones 1 & 2, Zones 21 & 22
Projecteur LED ATEX 150W 120° IP66 Lumileds Mean Well
M011501501206
€513.66
Tax included
Including 0.46 € for eco-contribution
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69The 150W ATEX LED floodlight is designed for installation in industrial environments with a risk of explosion due to the presence of flammable gases or combustible dust. Designed to illuminate medium to large ATEX zones, it complies with the ATEX Directive 2014/34/EU, guaranteeing safe operation in zones 1, 2, 21, and 22.
This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, providing powerful, stable, and efficient lighting, even in demanding industrial conditions.
High luminous efficacy and industrial reliability
With a power output of 150W, this floodlight delivers a luminous flux of 16,500 lumens, ensuring wide and even illumination in large spaces. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.
Designed for extreme conditions
The spotlight has an IP66 rating, making it dustproof and waterproof, as well as an IK10 impact resistance rating, suitable for indoor and outdoor use in extreme conditions. It operates in a temperature range of -20°C to +40°C.
Its aluminum housing with WF2 anti-corrosion treatment ensures maximum durability in harsh industrial environments.
Installation and technical considerations
It includes an adjustable bracket allowing for installation on walls, ceilings, or poles, depending on the project requirements.
The power cable is not included. A cable suitable for the specific ATEX environment, with a minimum diameter of 7 mm, compatible with the luminaire's cable gland, must be used.
Recommended Applications
The 150W ATEX LED floodlight is ideal for the following environments:

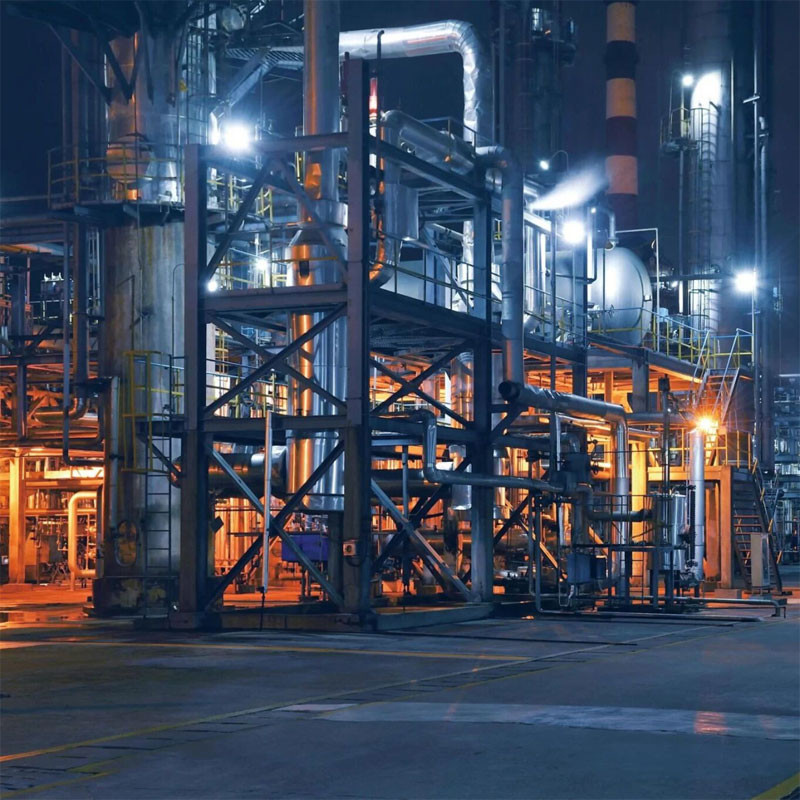

Medium to large-sized chemical or pharmaceutical sites
Industrial production areas with potentially explosive atmospheres
ATEX industrial parking lots and logistics areas
Loading and unloading areas with flammable gases or combustible dust
Industrial facilities requiring high light coverage
Recommended installation height: 6 to 8 meters.
M011501501206
Data sheet
- FAMILY
- Luminaires
- Implantation
- Mur
- Emplacement
- Applique
- Technology
- LED
- Average nominal lifespan
- 50000 H
- Lamp efficacy
- 110 Lm/W
- Manufacturer
- Masterled
- Power factor
- 0.95
- Luminous flux
- 16500 Lm
- Frequency
- 50/60
- Manufacturer warranty (year)
- 5
- Dimmable
- Non

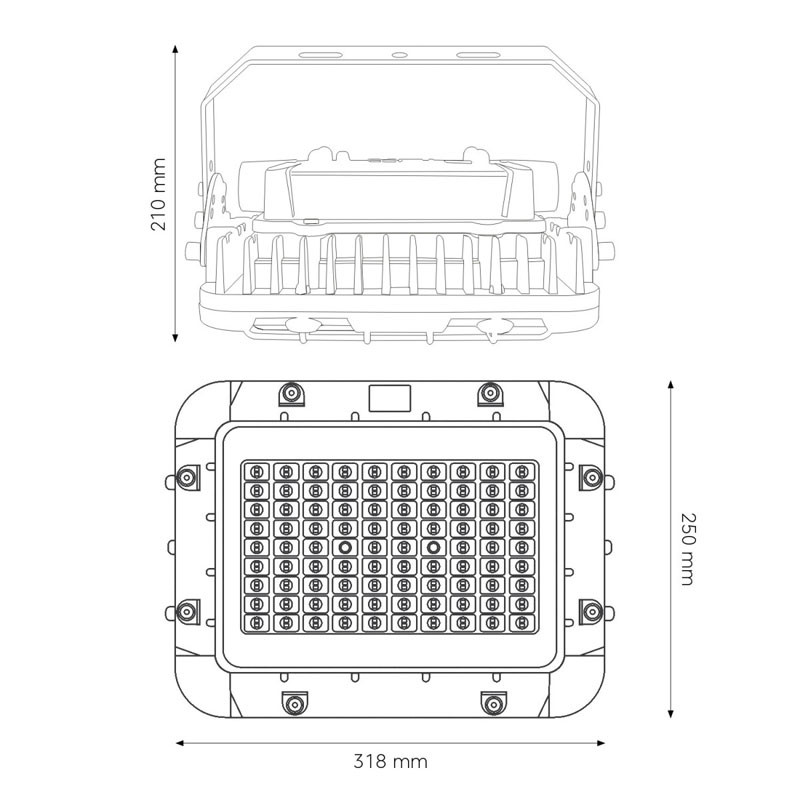

- Height
- 245 mm
- IP classification
- 66
- IK classification
- IK08 Résistance à un impact de 5 joules
- Color rendering indice (CRI)
- 70
- Width
- 210 mm
- Overall lenght
- 318 mm
- MAtter
- Aluminium
- Certifications
- CE
Ex
Rohs - Operating range
- -20 +40 °C
- Power
- 150 w
- Power source
- Integrated
- Light source
- Integrated
- Color temperature
- 6000 K
- Input voltage
- 85-265 v
- Angle
- 120 °
- Weight
- 9.4 Kgs
- Driver
- Meanwell
New product
1
11.3 Kgs
- Length : 43 cm
- width : 39 cm
- height : 28 cm
