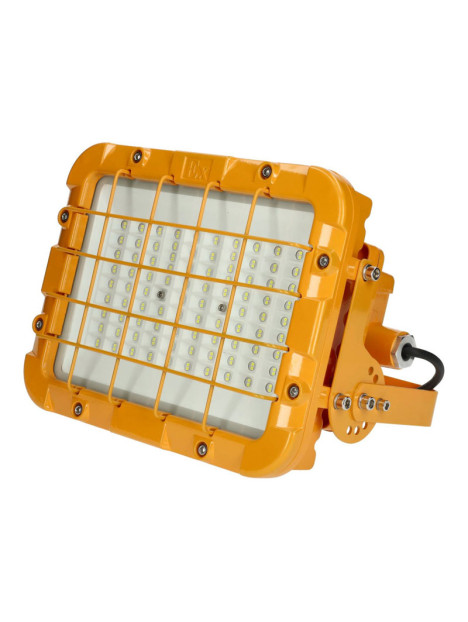

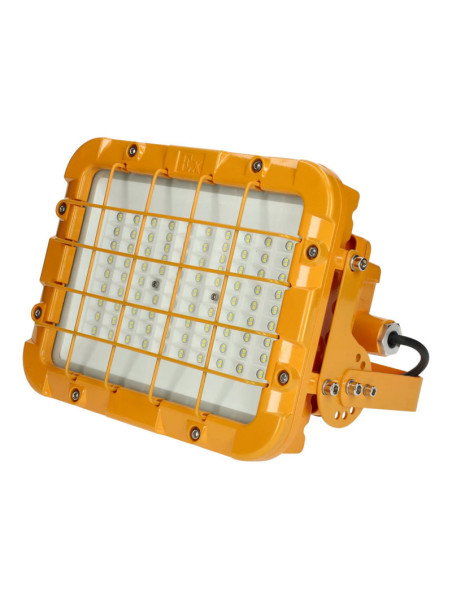

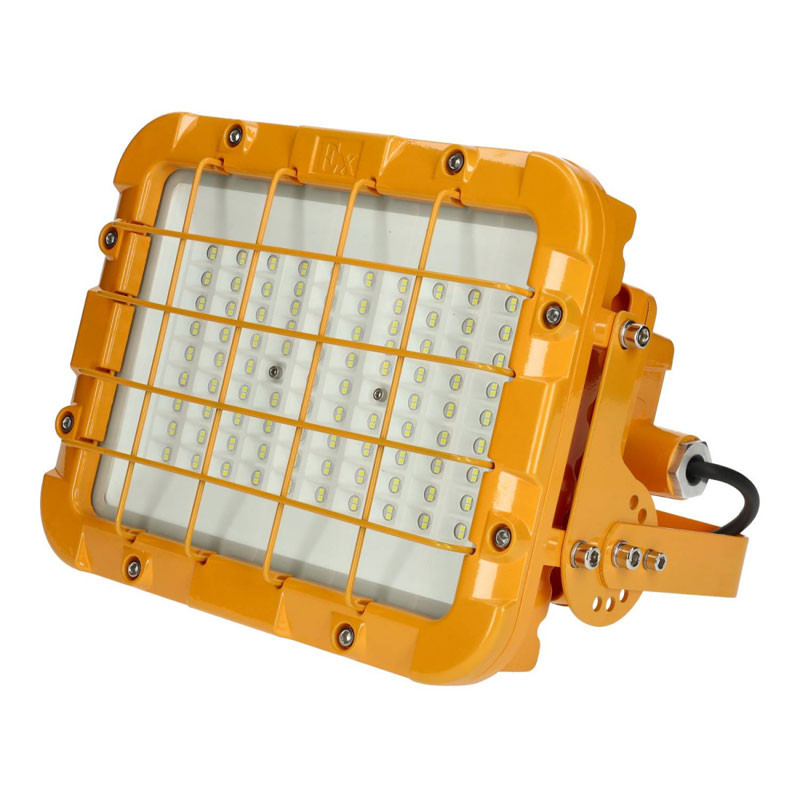

Projector ATEX led 200w 22000Lm IP66 Zones 1 & 2, Zones 21 & 22
Projecteur LED ATEX 200W 120° IP66 Lumileds Mean Well
M011502001206
€611.26
Tax included
Including 0.46 € for eco-contribution
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69The 200W ATEX LED floodlight is designed for installation in industrial environments with a risk of explosion due to the presence of flammable gases or combustible dust. Designed to illuminate large ATEX spaces and areas with high lighting requirements, it complies with the ATEX Directive 2014/34/EU, guaranteeing safe operation in zones 1, 2, 21, and 22.
This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, providing powerful, stable, and efficient lighting even in large industrial environments and extreme conditions.
High luminous performance and industrial reliability
With a power output of 200W, this floodlight delivers a high luminous flux, ideal for the homogeneous illumination of large areas and overhead installations. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.
Designed for extreme conditions
The spotlight has an IP66 rating for protection against dust and water, as well as IK10 impact resistance, making it suitable for indoor and outdoor use in harsh conditions. It operates reliably in a temperature range of -20°C to +40°C.
Its aluminum housing with WF2 anti-corrosion treatment ensures maximum durability and resistance in aggressive and exposed industrial environments.
Installation and technical considerations
It includes a reinforced adjustable bracket allowing for wall, ceiling, or pole mounting, particularly suitable for overhead installations and large industrial areas.
The power cable is not included. A cable suitable for the specific ATEX atmosphere, with a minimum diameter of 7 mm, compatible with the luminaire's cable gland, must be used.
Recommended Applications

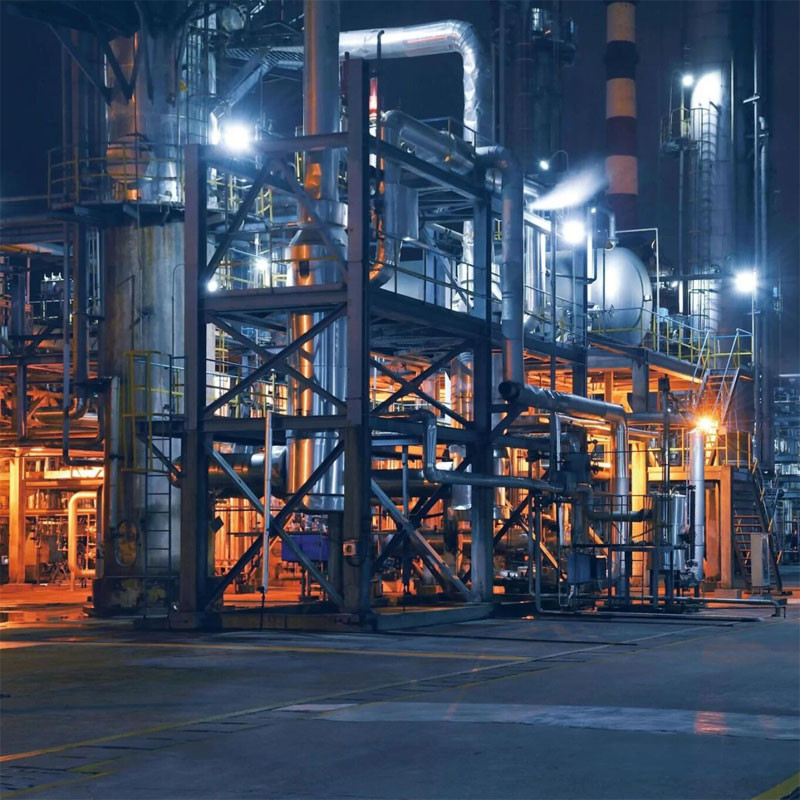

The 200W ATEX LED floodlight is ideal for:
- Large industrial and petrochemical plants
- Refineries, ports, and ATEX-rated outdoor areas
- High-bay industrial warehouses
- Large production and storage areas
- Industrial facilities requiring maximum light coverage
Recommended installation height: 8 to 12 meters.
M011502001206
Data sheet
- FAMILY
- Luminaires
- Implantation
- Mur
- Emplacement
- Applique
- Technology
- LED
- Average nominal lifespan
- 50000 H
- Lamp efficacy
- 110 Lm/W
- Manufacturer
- Masterled
- Power factor
- 0.95
- Luminous flux
- 22000 Lm
- Frequency
- 50/60
- Manufacturer warranty (year)
- 5
- Dimmable
- Non
- Height
- 250 mm
- IP classification
- 66
- IK classification
- IK08 Résistance à un impact de 5 joules
- Color rendering indice (CRI)
- 70
- Width
- 300 mm
- Overall lenght
- 370 mm
- MAtter
- Aluminium
- Certifications
- CE
Ex
Rohs - Operating range
- -20 +40 °C
- Power
- 200 w
- Power source
- Integrated
- Light source
- Integrated
- Color temperature
- 6000 K
- Input voltage
- 85-265 v
- Angle
- 120 °
- Weight
- 6.58 Kgs
- Driver
- Meanwell
New product
1
7.2 Kgs
- Length : 34 cm
- width : 26 cm
- height : 26 cm
