Non contractual photo
all light at your fingertips

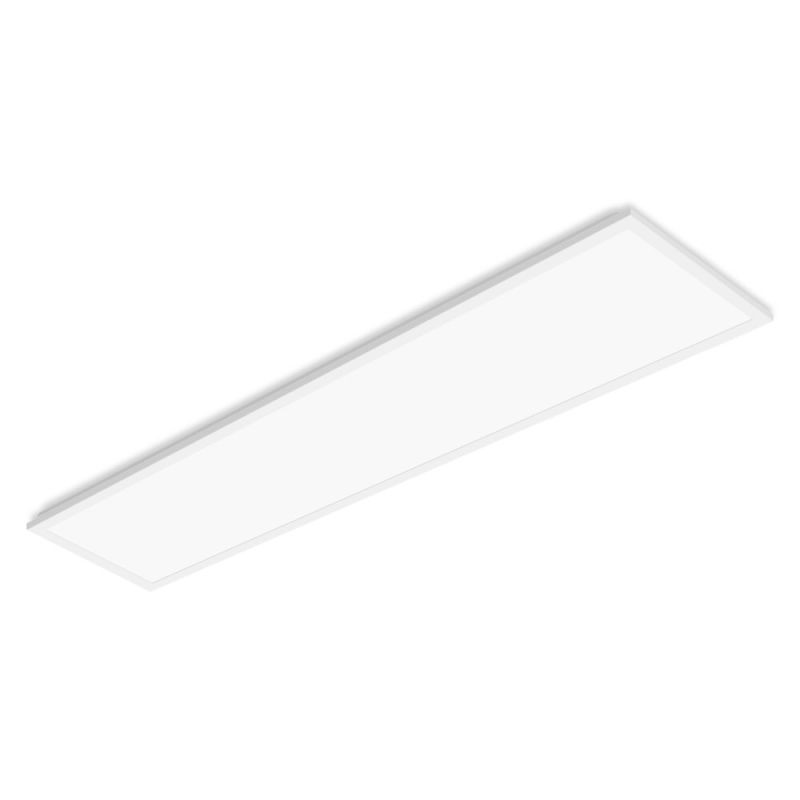

Compact LED Panel 1200 26W/4000K 3630lm UGR19 DALI TouchDIM
Panel LED Compact 1200 26W/4000K 3630lm UGR19 DALI TouchDIM IP50 140lm/W 75khL80
P050200735844
€306.62
Tax included
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Advantages
Suitable luminaire for VIVARES and other DALI-2 management systems
Energy savings thanks to high system efficiency: up to 140 lm/W
High color uniformity SDCM 3
Di-connection possible
Reduced glare versions (U19) for office applications available
Suitable for central battery backup systems Compliant with EN 60598-2-22
Product Features
IoT-ready luminaire with DALI-2 technology
Extruded aluminum frame, metal housing
Polystyrene diffuser
Lifespan (L80/B10): up to 75,000 h (at 25 °C)
5-pole terminal block, cable cross-section up to 5 x 2.5 mm²
Protection rating: IP50 (panel luminaire), IP20 (driver)
Applications
Suitable for recessed ceiling systems with a grid size of 1200 x 300 mm
Direct replacement for recessed luminaires with fluorescent tubes
Offices, conference rooms
Reception areas, corridors, elevators
Technical Specifications / Accessories
Accessories for various mounting options available
Fixture safety cable included
Pre-installed safety brackets
External ballast Included
Suitable for use with a separate emergency conversion box
Replacement driver available separately
P050200735844
4099854735844
Data sheet
- FAMILY
- Luminaires
- Implantation
- Plafond
- Emplacement
- Encastré
- Technology
- LED
- Power supply
- French sector
- Electrical protection class
- II
- Illumination color
- Blanc
- Average nominal lifespan
- 100000 H
- Lamp efficacy
- 140 Lm/W
- Manufacturer
- LEDVANCE
- Power factor
- 0.90
- Finition
- Blanc
- Luminous flux
- 3640 Lm
- Form
- Rectangle
- Frequency
- 50/60
- Manufacturer warranty (year)
- 5
- Dimmable
- Oui

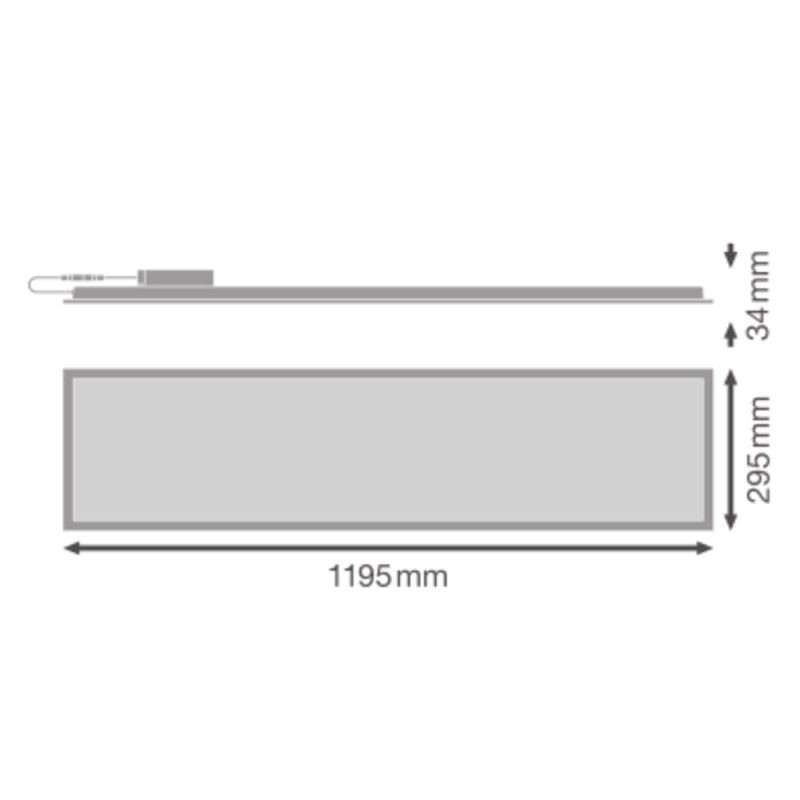

- Height
- 34 mm
- Implantation
- Plafond
- IP classification
- 20
- IK classification
- IK02 Résistance à un impact de 0.2 joules
- Color rendering indice (CRI)
- 80
- Current
- 0.12 A
- Width
- 295 mm
- Overall lenght
- 1195 mm
- Certifications
- CE
RG 0 Photobio 62471
UGR 19 Eclairage des bureaux - Operating range
- -10 +45 °C
- Protocol
- DALI
- Power
- 26 w
- Power source
- Integrated
- Light source
- Integrated
- Glass shade
- Opale
- Temperature at the thread
- 650
- Color temperature
- 4000 K
- Input voltage
- 220-240 v
- Input voltage type
- AC
- Angle
- 90 °
- Weight
- 1.74 Kgs
New product
4
9.64 Kgs
- Length : 133 cm
- width : 18 cm
- height : 33 cm
