all light at your fingertips
Projector ATEX led 150w 16000Lm IP66 Zones 1 & 2, Zones 21 & 22
Projector LED ATEX 100W 120° IP66 Lumileds Mean Well
M011501001206
€503.02
Tax included
Including 0.46 € for eco-contribution
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69
The 100W ATEX LED floodlight is designed for installation in industrial environments where there is a risk of explosion due to the presence of flammable gases or combustible dust. Engineered to illuminate medium-to-large ATEX zones, it complies with the ATEX Directive 2014/34/EU, ensuring safe operation in zones classified as 1, 2, 21, and 22.
This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, delivering powerful, stable, and efficient lighting, even in demanding industrial conditions.
High luminous efficacy and industrial reliability
With a power output of 100W, this floodlight delivers a luminous flux of 11,000 lumens, ensuring broad, uniform illumination across large spaces. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.
Designed for extreme conditions
The floodlight features an IP66 protection rating, making it dust- and water-resistant, as well as an IK10 impact resistance rating, making it suitable for indoor and outdoor use in extreme conditions. It operates within a temperature range of -20°C to +40°C.
Its aluminum housing, featuring WF2 anti-corrosion treatment, ensures maximum durability in harsh industrial environments.
Installation and technical considerations
It includes an adjustable bracket allowing for installation on walls, ceilings, or masts, depending on project requirements.
The power cable is not included. A cable suitable for the specific ATEX atmosphere must be used; it requires a minimum diameter of 7 mm and must be compatible with the luminaire's cable gland. Recommended applications
The 100W ATEX LED floodlight is ideal for the following environments:
Medium- to large-scale chemical or pharmaceutical sites
Industrial production areas with explosive atmospheres
Industrial car parks and ATEX logistics zones
Loading and unloading areas involving flammable gases or combustible dust
Industrial facilities requiring high-output lighting coverage
Recommended installation height: 6 to 8 meters.
M011501001206
Data sheet
- FAMILY
- Luminaires
- Implantation
- Mur
- Emplacement
- Applique
- Technology
- LED
- Angle
- 120 °
- Average nominal lifespan
- 50000 H
- Lamp efficacy
- 110 Lm/W
- Manufacturer
- Masterled
- Power factor
- 0.95
- Luminous flux
- 11000 Lm
- Frequency
- 50/60
- Manufacturer warranty (year)
- 5
- Dimmable
- Non

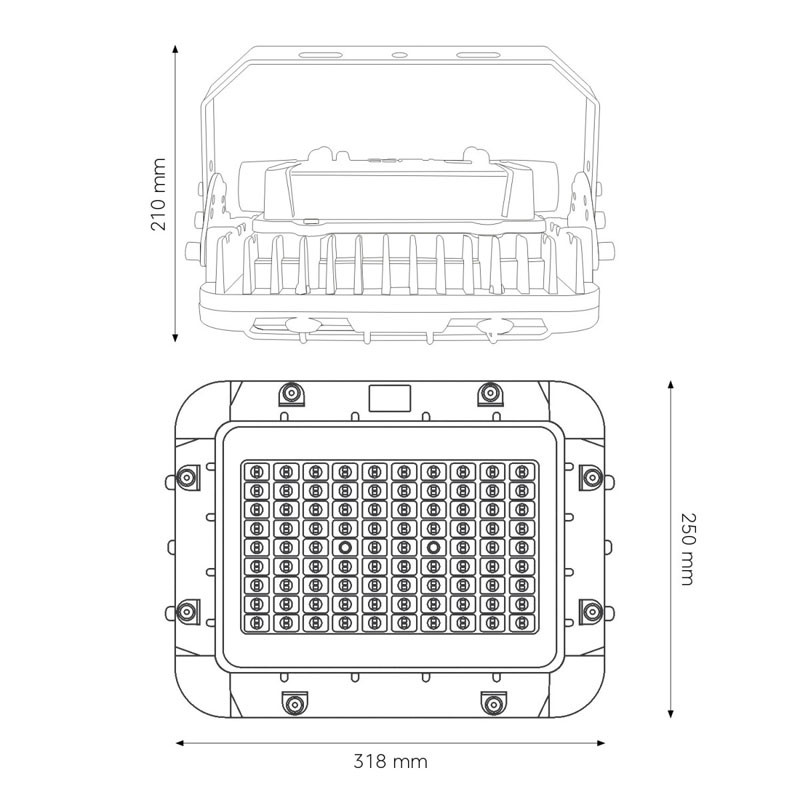

- Height
- 245 mm
- IP classification
- 66
- IK classification
- IK08 Résistance à un impact de 5 joules
- Color rendering indice (CRI)
- 70
- Width
- 210 mm
- Overall lenght
- 318 mm
- MAtter
- Aluminium
- Certifications
- CE
Ex
Rohs - Operating range
- -20 +40 °C
- Power
- 150 w
- Power source
- Integrated
- Light source
- Integrated
- Color temperature
- 6000 K
- Input voltage
- 85-265 v
- Weight
- 6.58 Kgs
- Driver
- Meanwell
New product
1
7.2 Kgs
- Length : 34 cm
- width : 26 cm
- height : 26 cm
