Non contractual photo

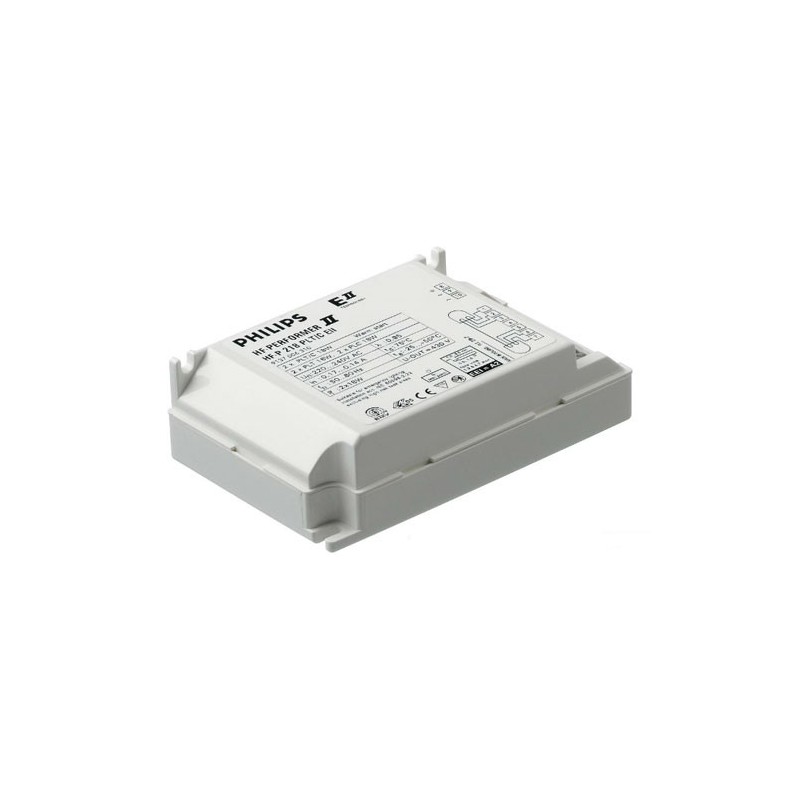

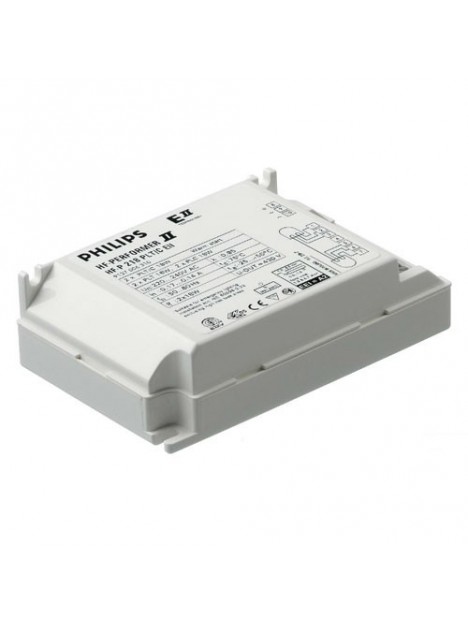

Electronic Ballast for T5C=2x22/40w DE=2x26w 2D=38w TE=2x26/32/42w L=2x18/24w Philips

Name: Electronic Ballast for T5C=2x22/40w DE=2x26w 2D=38w TE=2x26/32/42w L=2x18/24w Philips
Brand: PHILIPS
SKU: BAL913999
Price: 24.88 EUR
Availability: InStock

HF-Performer 2 22-42 PL-T/C/L/TL5C EII 2 Philips

Reference: BAL913999

€24.88

Tax included

Including 0.10 € for eco-contribution

Stock available immediately: 0

European stock available quickly: 230

QUANTITY	1 to 11	12 and +
UNIT PRICE (excVAT)	€20.73	€19.70
Net price (incVAT) Eco-contribution included	€24.88	€23.64

Estimated shipping Day: 8 to 10 days

Quantity

At your service

QUANTITY DISCOUNT

FREE SHIPPING

SECURE PAYMENT

info@francelampes.com

05 63 63 94 69

Electronic compact ballast 230V HF-Performer 2 22-42

Use to:

2GX13	T5C :	2x 22w, 2x 40w
2GX13	T5C :	1x 22w +1x 40w
G24Q3	DE :	2x 26w
GX24Q3-4	TE :	2x 26w, 2x32w, 2x 42w
2G11	L :	2x 18w, 2x 24w

Features and Benefits

Unique benefits of the new Philips EII technology:
Programmed start: flicker-free, warm start circuit preheating (0.5 s) the lamp electrodes; this enables the lamps to be switched on and off without reducing usefu life
Smart power: constant light independent of mains voltage fluctuations
Unit is protected against excessive mains voltages and incorrect connections
Automatic stop circuit is activated within 5 seconds in case of lamp failure (safety stop); once the lamp has been replaced, the ballast resets automatically

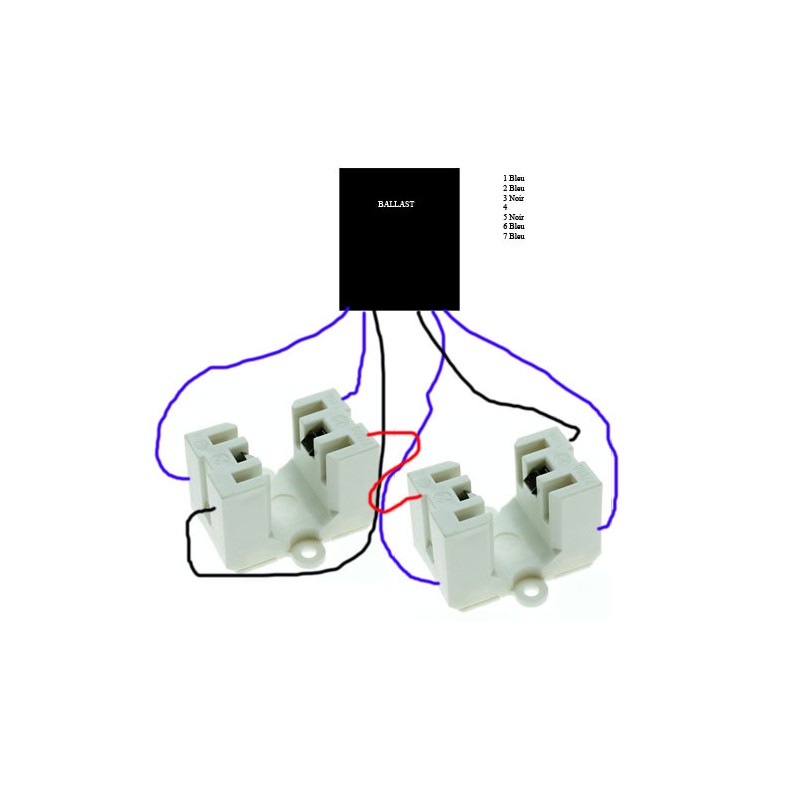

Equipped with universal connector for both manual and automatic wiring
Optimized system efficiency, minimized ballast power losses
Miniaturised dimensions for HF-Performer compact gear range
Simplified standardized portfolio allowing flexible, modular luminaire design
Cooler product allows more compact luminaire design
Fast preheat for short ignition time (0.5 s)

Applications

Ideal for applications with high switching frequency, typical application areas include:
Use with infrared remote control systems (e.g.movement detection)
Department stores, shops, supermarkets, hotels, hospitals, office buildings, industrial premises

Reference: BAL913999

EAN13: 8711500913999

Data sheet

FAMILY: Accessoires
USAGE ACC: Alimentation
Technology: Fluorescence
Equipment: Ballast électronique
Power supply: French sector
Ballast
Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique

- le culot: G13

- le type: T8

- le nombre de lampe qu'il peut alimenter: 1

- la puissance de la lampe : 18w

Dans cet exemple, le ballast peut donc alimenter un seul tube G13 de 18w: 2G11-L/2x18w
2G11-L/2x24w
2GX13-T5C/1x22w
2GX13-T5C/1x40w
2GX13-T5C/2x22w
2GX13-T5C/2x40w
G24Q-DE/2x26w
GX24Q-TE/2x26w
GX24Q-TE/2x32w
GX24Q-TE/2x42w
Average nominal lifespan: 50000 H
Manufacturer: PHILIPS
Power factor: 0.95
Dimmable: Non
Height: 30 mm
Width: 67 mm
Overall lenght: 103 mm
Input voltage: 220-240 v
Weight: 0.14 Kgs
