Non contractual photo
all light at your fingertips

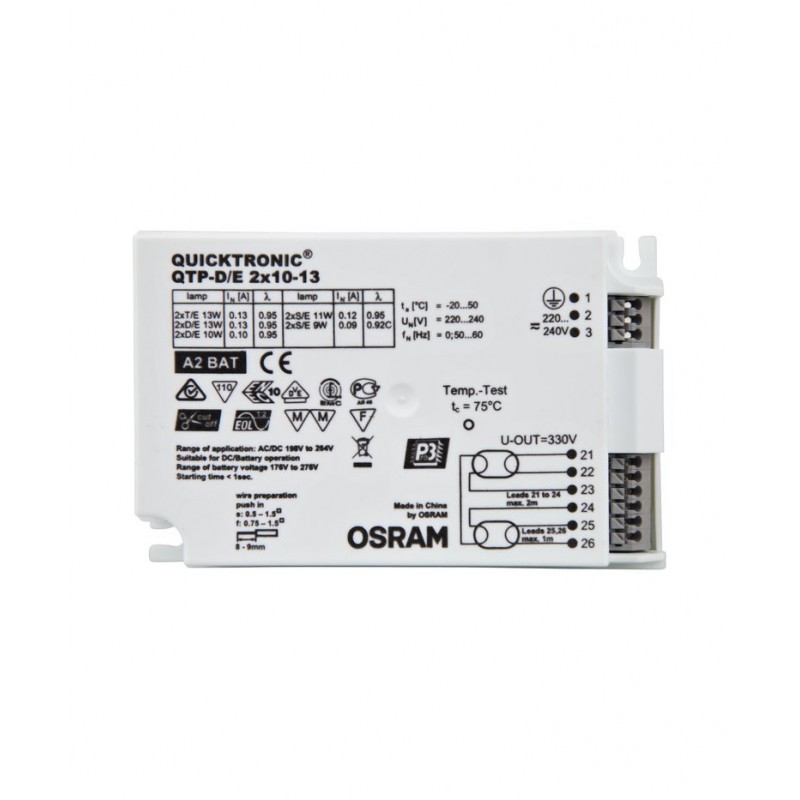

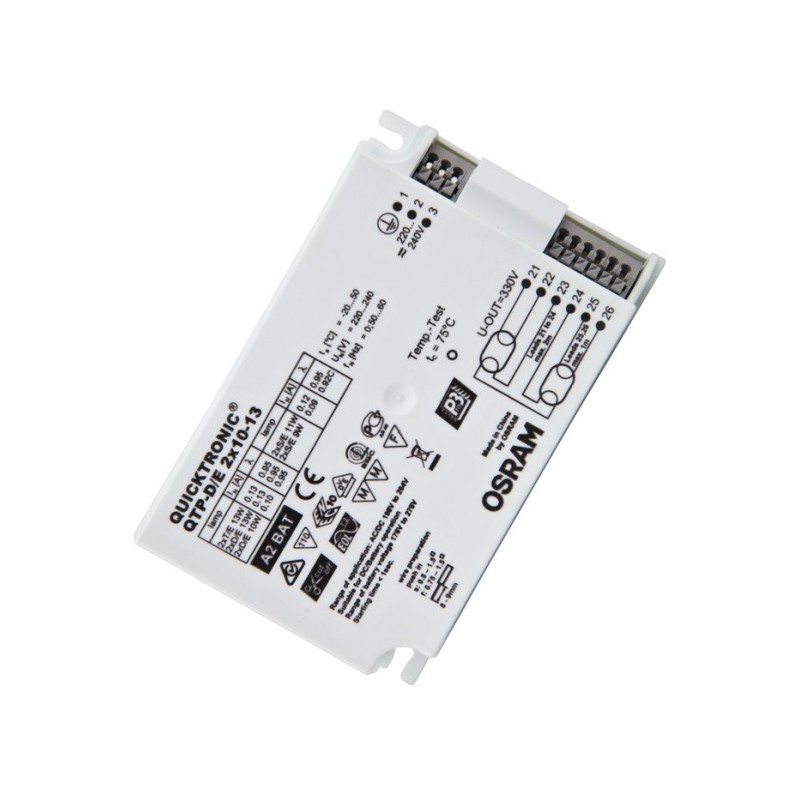

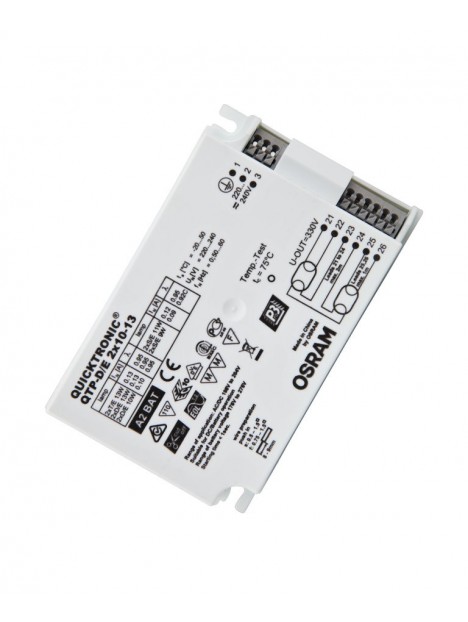

Electronic ballast for 2 lamps D/E 10w 13w Osram
QUICKTRONIC QTP-D/E 2X10-13/220-240 Osram
A030200181596
€24.32
Tax included
Hurry up! Only
3
item(s) left in Stock!
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product features
Supply voltage: 220 to 240 V,
Line voltage: 198 to 264 V,
Line frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start-up with filament preheating
Energy efficiency index EEI: A2
Automatic shutdown of defective and end-of-life lamps (EoL T.2)
Lamp operation: according to EN 60929
Safety: according to EN 61347-2-3
Product advantages
Long lamp life
No negative effects from frequent on / off switching
Auto restart after lamp replacement
Perfect lighting of the lamp for applications with motion cells
Separate installations with optional cable clamp for K2 and K3 boxes
VDE / VDE EMC certified system
Application areas
Emergency lighting system according to EN 50172 / DIN VDE 0108-100
Public buildings
Sports halls and factories
Suitable for luminaires of protection class I
A030200181596
4008321181596
Data sheet
- FAMILY
- Accessoires
- USAGE ACC
- Alimentation
- Technology
- Fluocompacte
- Equipment
- Ballast électronique
- Power supply
- French sector
- Ballast
info Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique
- - le culot: G13
- - le type: T8
- - le nombre de lampe qu'il peut alimenter: 1
- - la puissance de la lampe : 18w
- G24Q-DE/2x10w
G24Q-DE/2x13w
GX24Q-TE/2x13w - Electrical protection class
- I
- Average nominal lifespan
- 100000 H
- Manufacturer
- OSRAM
- Frequency
- 50/60
- Dimmable
- Non
- Height
- 33 mm
- IP classification
- 20
- Width
- 79 mm
- Overall lenght
- 123 mm
- Input voltage
- 220-240 v
- Weight
- 0.19 Kgs
20
4.039 Kgs
- Length : 41.8 cm
- width : 25.5 cm
- height : 8.2 cm
