Non contractual photo
all light at your fingertips

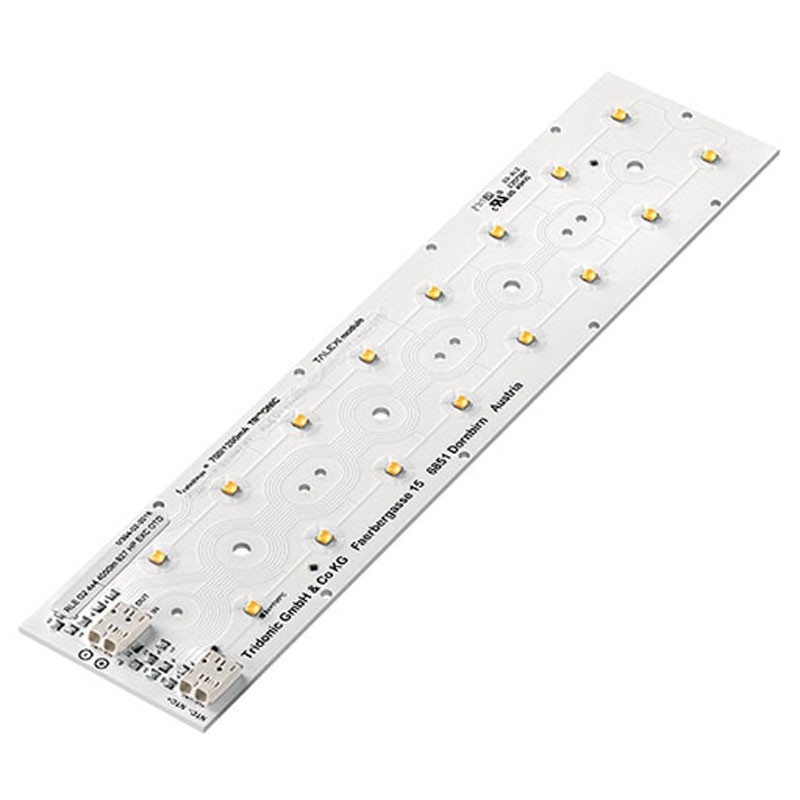

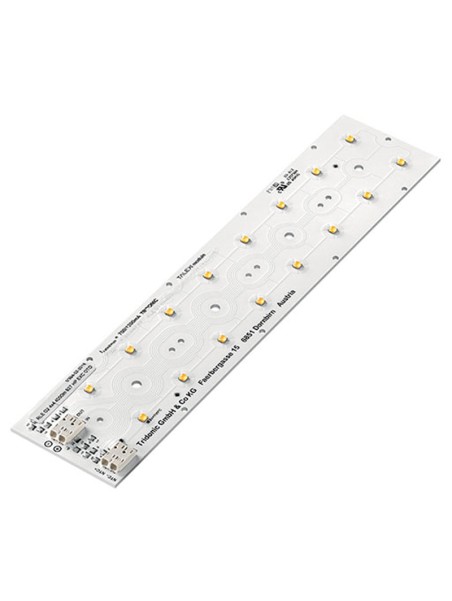

RLE 2x8 4000lm 757 HP EXC2 OTD Tridonic
RLE 2x8 4000lm 757 HP EXC2 OTD
A066089603435
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
High efficiency outdoor modules
Suitable for harsh and wet outdoor conditions
Has been verified with salt spray test (IEC 60068-2-52) and toxic gas test (GR-1217-CORE)
Wide temperature range from -40°C to +105°C
Surge tested (+/- grounded) of 6 kV with LED driver from Tridonic
Built-in NTC for overheating protection
Complies with Zhaga Book 15
For use with 2 x 2 standard lenses (e.g. LEDiL Strada 2x2)
Terminal blocks for quick and easy wiring
High lifespan: 100,000 hours
8 years warranty
Optical properties
Color temperatures 2200K, 2700K, 3000K, 4000K, 5000K, 5700K and 6500K
Useful luminous flux 5,130 lm with Irated and tp = 25°C
LED module efficiency 187 lm/W with Irated and tp = 25°C
Two color rendering indices for the application: Ra > 70 for high efficiency, Ra > 80 for high color rendering
Tight luminous flux tolerances
Mechanical properties
Module dimensions 49.5 x 121.4 mm and 49.5 x 223 mm
Mounting the lens modules with M3 screws
A066089603435
9006210704203
Data sheet
- FAMILY
- Lampes
- Technology
- LED
- Average nominal lifespan
- 100000 H
- Lamp efficacy
- 187 Lm/W
- Manufacturer
- TRIDONIC
- Luminous flux
- 5130 Lm
- Manufacturer warranty (year)
- 8
- Color rendering indice (CRI)
- 70
- Width
- 49.5 mm
- Overall lenght
- 223 mm
- Operating range
- -40 +80 °C
- Color temperature
- 5700 K
- Weight
- 0.005 Kgs
New product
20
0.25 Kgs
- Length : 16.8 cm
- width : 13.2 cm
- height : 14.7 cm
