Non contractual photo
all light at your fingertips

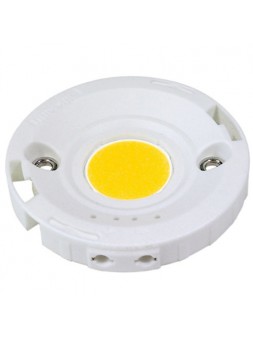

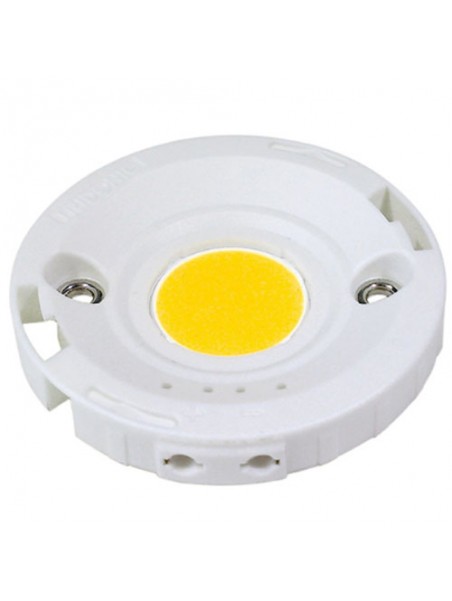

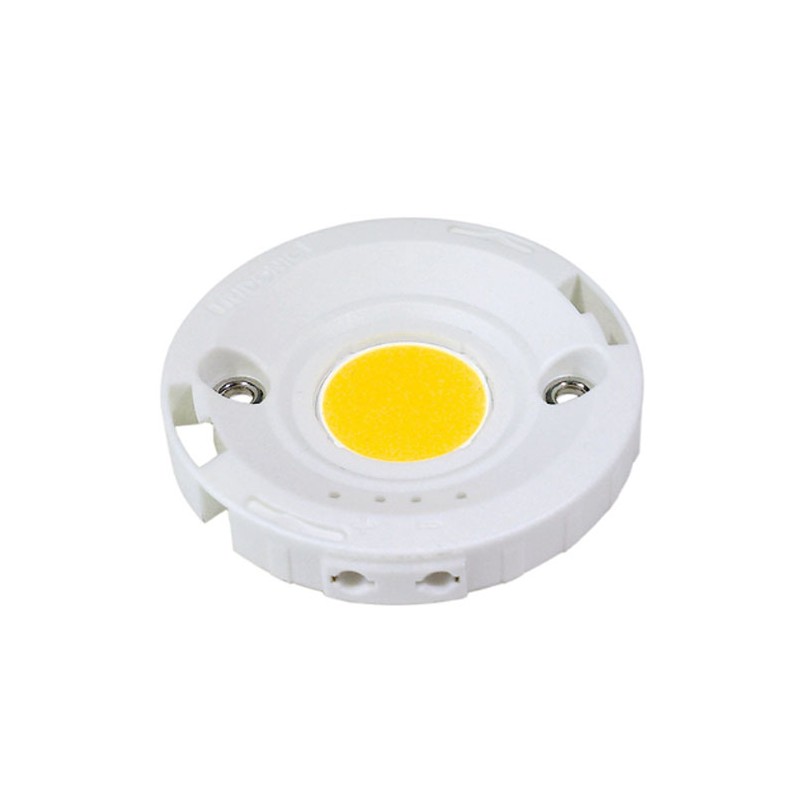

Module led SLE G7 15mm 4000lm 840 H ADV Tridonic
SLE G7 15mm 4000lm 840 H ADV
A066028002568
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
Use in spotlights and downlights
TIM variants for quick and easy assembly
Suitable for operation with SELV devices
Excellent heat management thanks to COB technology
Homogeneous radiation thanks to Dam&Fill technology
Integrated LED module
Cooling required
Flexible mode of operation
4100K CRI90 module, COI approved per AS/NZS1680.2.5:1997
HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output
Long life: 55,000 hours
5 year warranty (see conditions under www.tridonic.com)
Optical properties
Color temperatures 2700, 3100, 3500 and 4100 K
Useful luminous flux 8.553 lm with Irated and tp = 25°C
LED module efficiency 172 lm/W with Irated and tp = 25°C
Excellent color rendering of Ra > 80 and Ra > 90
Narrow color tolerance (MacAdam 3)
Mechanical properties
Module sizes LES09, LES13, LES15, LES17 and LES21
Housing with Snap-On closure for easy mounting of the reflector
50 mm housing with 35 mm mounting hole spacing according to Zhaga standard
Hole for fixing M3 screws
System Solution
LED system solutions, consisting of LED modules and dimmable Tridonic converters, enable exceptional efficiencies (configuration possible via https://setbuilder.tridonic.com/)
A066028002568
9006210682273
Data sheet
- FAMILY
- Lampes
- Technology
- LED
- Diameter
- 50 mm
- Average nominal lifespan
- 55000 H
- Lamp efficacy
- 137 Lm/W
- Manufacturer
- TRIDONIC
- Luminous flux
- 4000 Lm
- Product line
- LES15 Tridonic
- Manufacturer warranty (year)
- 5
- Color rendering indice (CRI)
- 80
- Color temperature
- 4000 K
- Weight
- 0.01 Kgs
New product
1
0.01 Kgs
- Length : cm
- width : 5 cm
- height : 5 cm
