  • PHILIPS
    •










     Non contractual photo

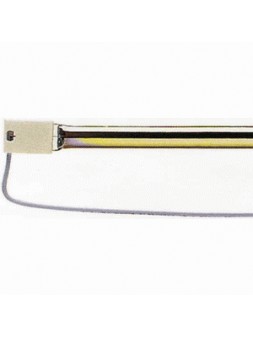

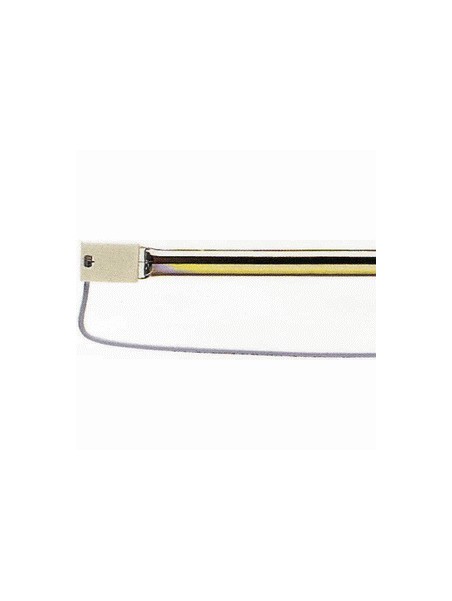

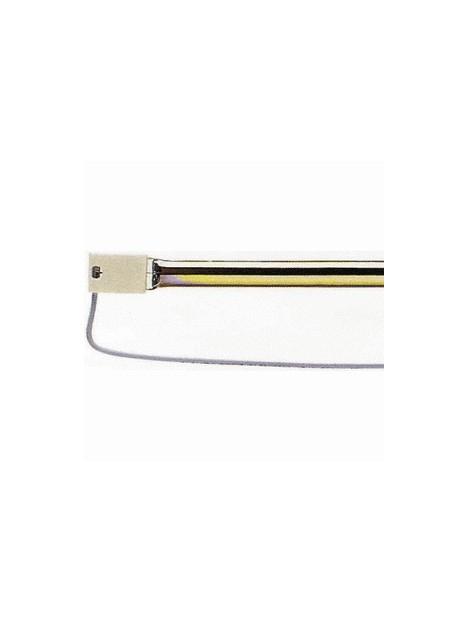

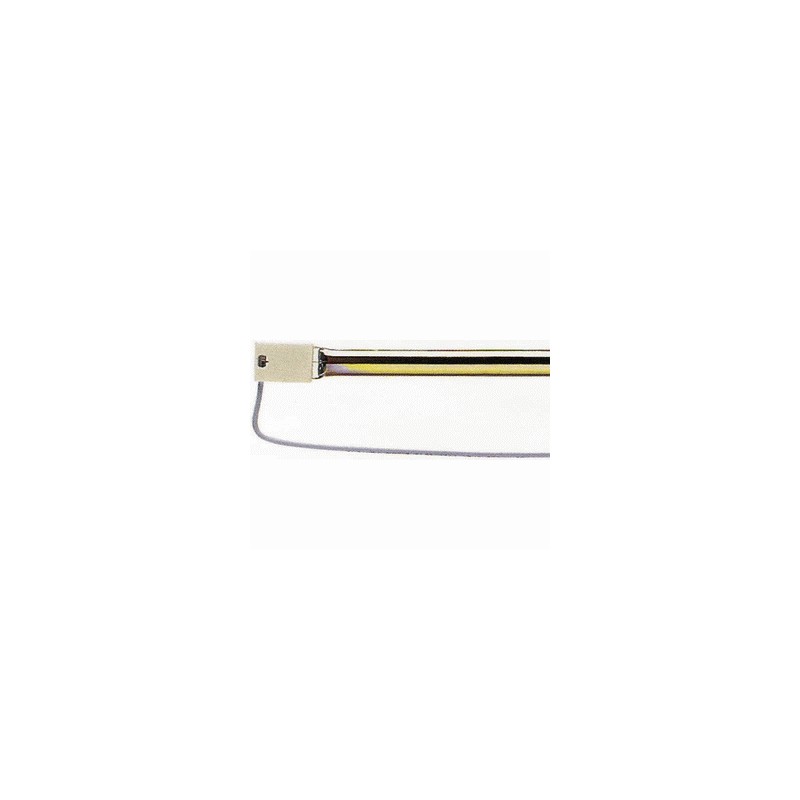

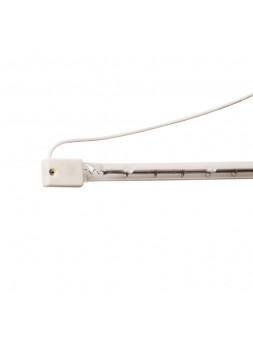

IRK 13169Z/98 Infrared 500w 235V 11x227mm




















          IR13169Z98

















           	          €284.82


















              Tax included















          	Not returned or exchanged item









                             Hurry up! Only
                6
                 item(s) left in Stock!


            You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.




           	The French flag indicates the current stock in our warehouse in France, therefore immediately available.
            If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".



            Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.

Some suppliers do not wish to communicate their stocks beyond 200 pcs.

Some suppliers do not communicate their stocks.














































 Stock available immediately: 6









                            QUANTITY

                                                                                    1 to 9

                                                                                                   10 to 19
                                                                                                    20 and +





                            UNIT PRICE (excVAT)
                                                        	                                	€47.47
                                                                                                    €42.72
                                                                                                    €40.59





                                UNIT PRICE (incVAT)
                                                                	                                    	€56.96
                                                                                                                €51.26
                                                                                                                €48.71


















Estimated shipping Day: 1 to 3 days





        Quantity











                  Product to be ordered in multiples of 5.




















0




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69
































Tubular double-ended infrared halogen lamp used as high-power and high-efficiency heat source for various industrial applications


Spectral emission between 700/800 nm.


X/98 et Z/98 avec réflecteur


Z - Avec câbles
X - Sans câbles
98 - Avec réflecteur








Product Benefits




  1. Instant heat: full power within 1 second at switching on
    2.





  1. Clean: no by product and no pollution emitted by Infrared lamps
    2.





  1. Safe: heat shock resistant lamp thanks to its quartz envelop
    2.





  1. Economical: more than 85% of the consumed energy is transmitted into infrared heat
    2.





  1. Fully dimmable: Infrared lamps are accurately controllable (0% to 100%)
    2.





  1. Possibility to put sensor: On/Off switches do not affect life time of Infrared lamps
    2.





  1. Low maintenance: long life time of about 5 000 hours
    2.





  1. Heat can be focused: Infrared lamps have the same optical properties as light, meaning that the heat can be directed by reflectors
    2.





  1. Compact heat source: Infrared lamps have a narrow diameter
    2.










Application




  1. Paint drying in tunnels and body shops
    2.





  1. Blowing of PETP bottles
    2.





  1. Plastics thermoforming
    2.





  1. Softening, melting of plastics
    2.





  1. Epitaxy, CVD, RTP, Oxidation
    2.


























        IR13169Z98

























Data sheet




FAMILY




Lampes



Power supply




French sector



Arc




159



Base




SK15



Diameter




11
									mm



Average nominal lifespan




5000
									H



Manufacturer




PHILIPS



Dimmable




Non



Width




11
									mm



Lenght




165
									mm



Overall lenght




227
									mm



Power




500
									w



Glass shade




Claire



Color temperature




2300
									K



Input voltage




235
									v



Weight




0.35
									Kgs














        New product



















                     1




                     0.35 Kgs








  • Length : 22.7 cm
    •

  • width : 1.1 cm
    •

  • height :  cm
    •
