  • AAG STUCCHI
    •










     Non contractual photo

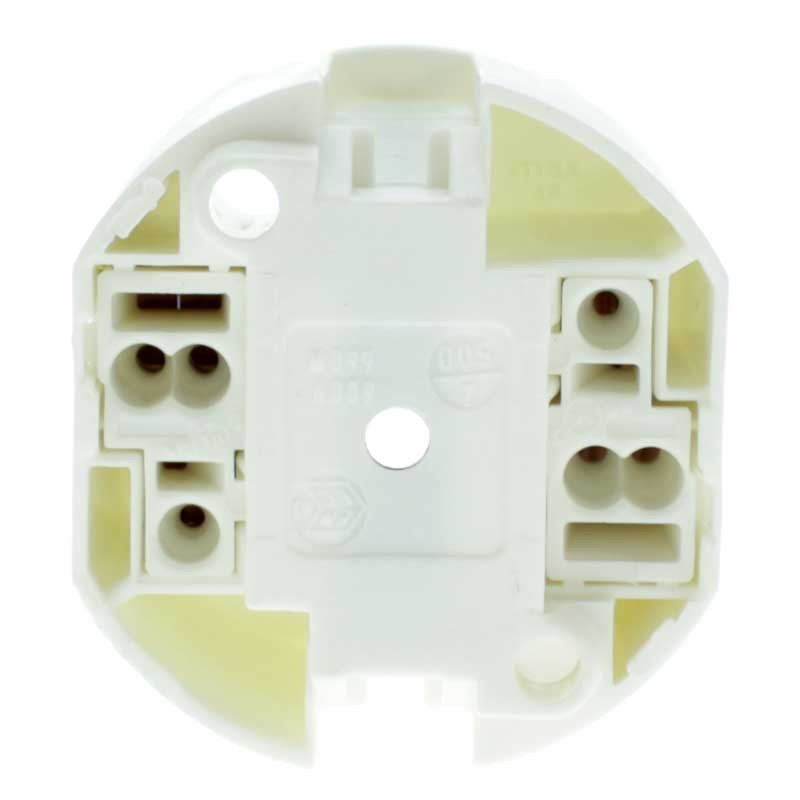

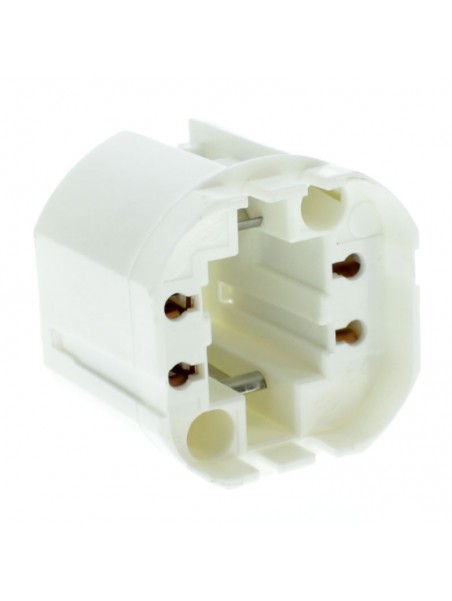

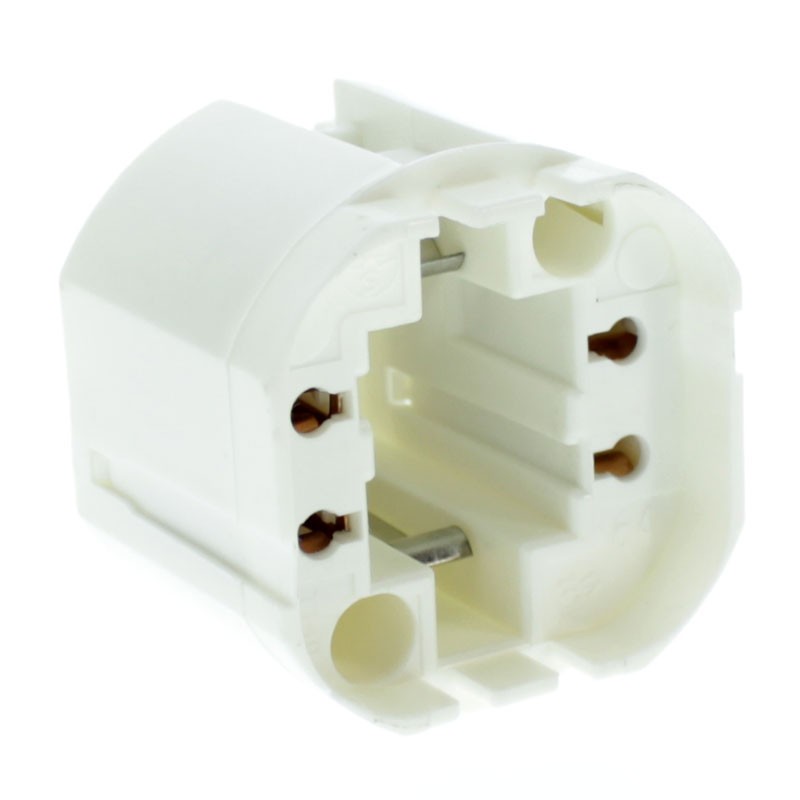

Lampholder G24Q4-GX24Q4 screw fixing in line




















          A1056001422Q4

















           	          €2.71


















              Tax included












































 Stock available immediately: 450









                            QUANTITY

                                                                                    1 to 9

                                                                                                   10 to 49
                                                                                                    50





                            UNIT PRICE (excVAT)
                                                        	                                	€2.26
                                                                                                    €2.15
                                                                                                    €2.03





                                UNIT PRICE (incVAT)
                                                                	                                    	€2.71
                                                                                                                €2.58
                                                                                                                €2.44


















Estimated shipping Day: Today





        Quantity































0




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69


































Key: q-4 (42 Watt)
Approval: additional cULus
For lamps TC-DEL, TC-TEL
Screw fixing
Snap in fixing
Rated current and voltage: 2A-500V
Maximum operating temperature (IEC): T140
Protection index: IP20
Impulse withstand category:  III
Characteristics
with retractable rear anti-rotation pins
— White PBT body
— Copper alloy contacts



















        A1056001422Q4

























Data sheet




FAMILY




Accessoires



Connectique




Douilles, Kits & Adaptateur



Base




G24q-4



Manufacturer




AAG STUCCHI

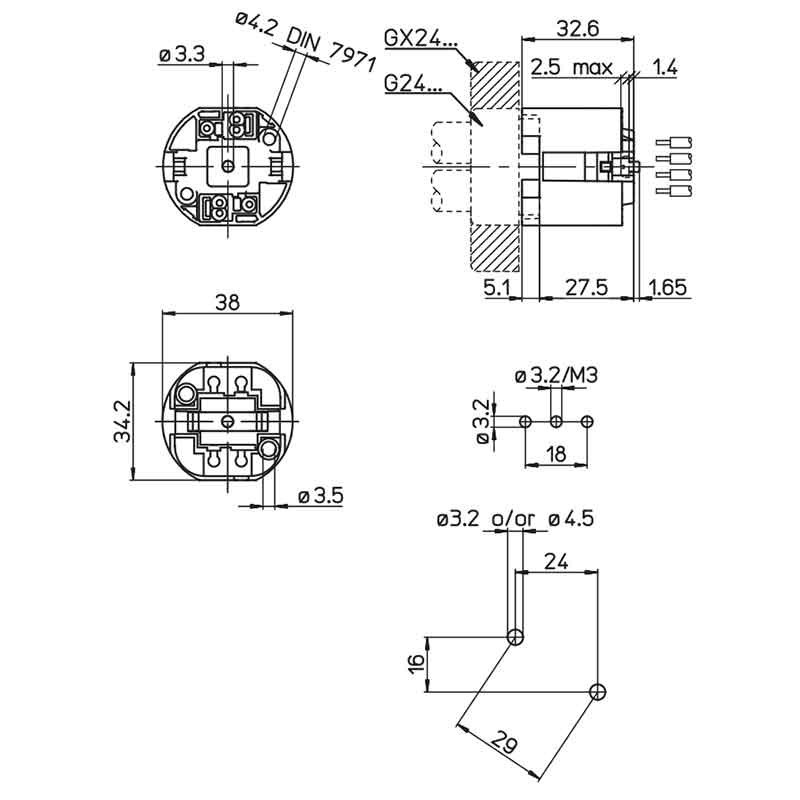

Height




32.6
									mm



Width




34.2
									mm



Overall lenght




38
									mm



Weight




0.018
									Kgs



























                     1




                     0.018 Kgs








  • Length : 3.8 cm
    •

  • width : 3.42 cm
    •

  • height : 3.26 cm
    •
